EXTRA BUTTON INPUTS

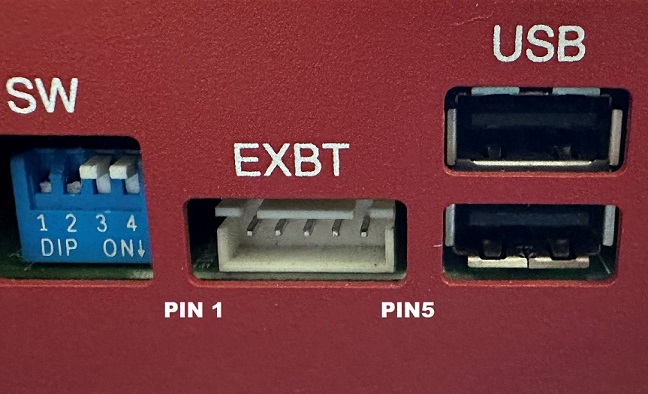

EXTRA 5/6 BUTTON INPUTS

Pin 1: 1Player Button 5,

Pin 2: 1Player Button 6,

Pin 3: ???,

Pin 4: 2Player Button 5,

Pin 5: 2Player Button 6

Grounding Pin 3 didnít show any inputs on the IO test

Plug should be a "JST XHP-5 connector" ??


V1.03 (C) 20023 igspgm.com
