SSM2 EPSON DPU-414 PRINTER SETUP / CABLE

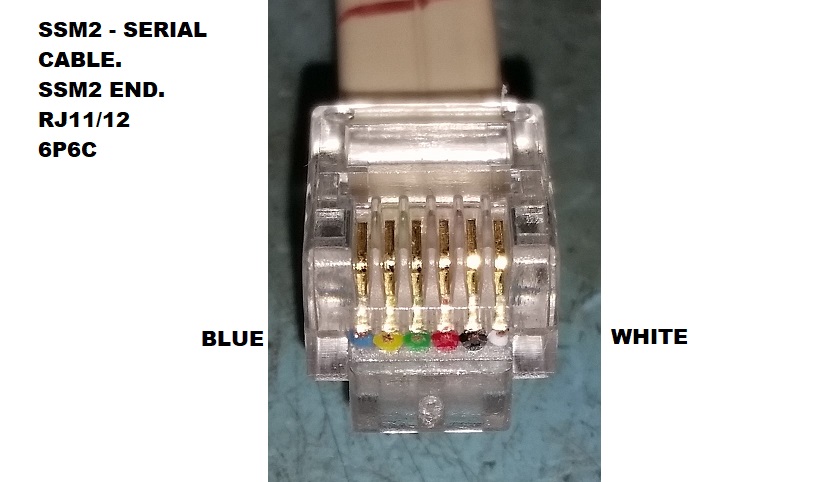

This is not a hard cable to make. It allows you to print out reports, Fault lists etc from the SSM2 unit. It uses a RJ11/12 6Pin 6Contact (6P6C) Plug on the SSM2 end. And a DB9 Male connector on the printer end.

The cable MUST be shorter than 1 meter.

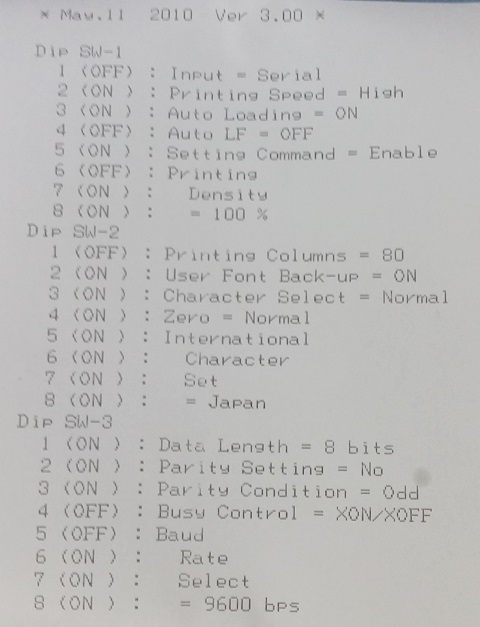

PRINTER SETTINGS

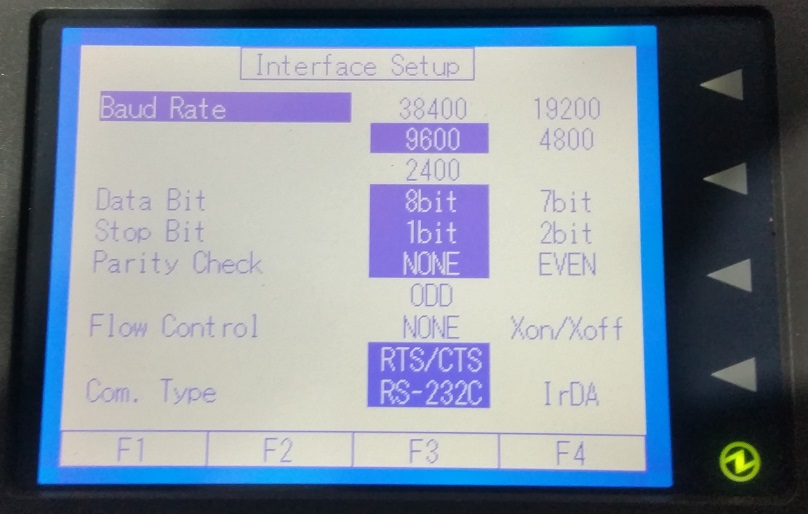

SSM2 SERIAL PORT SETTINGS

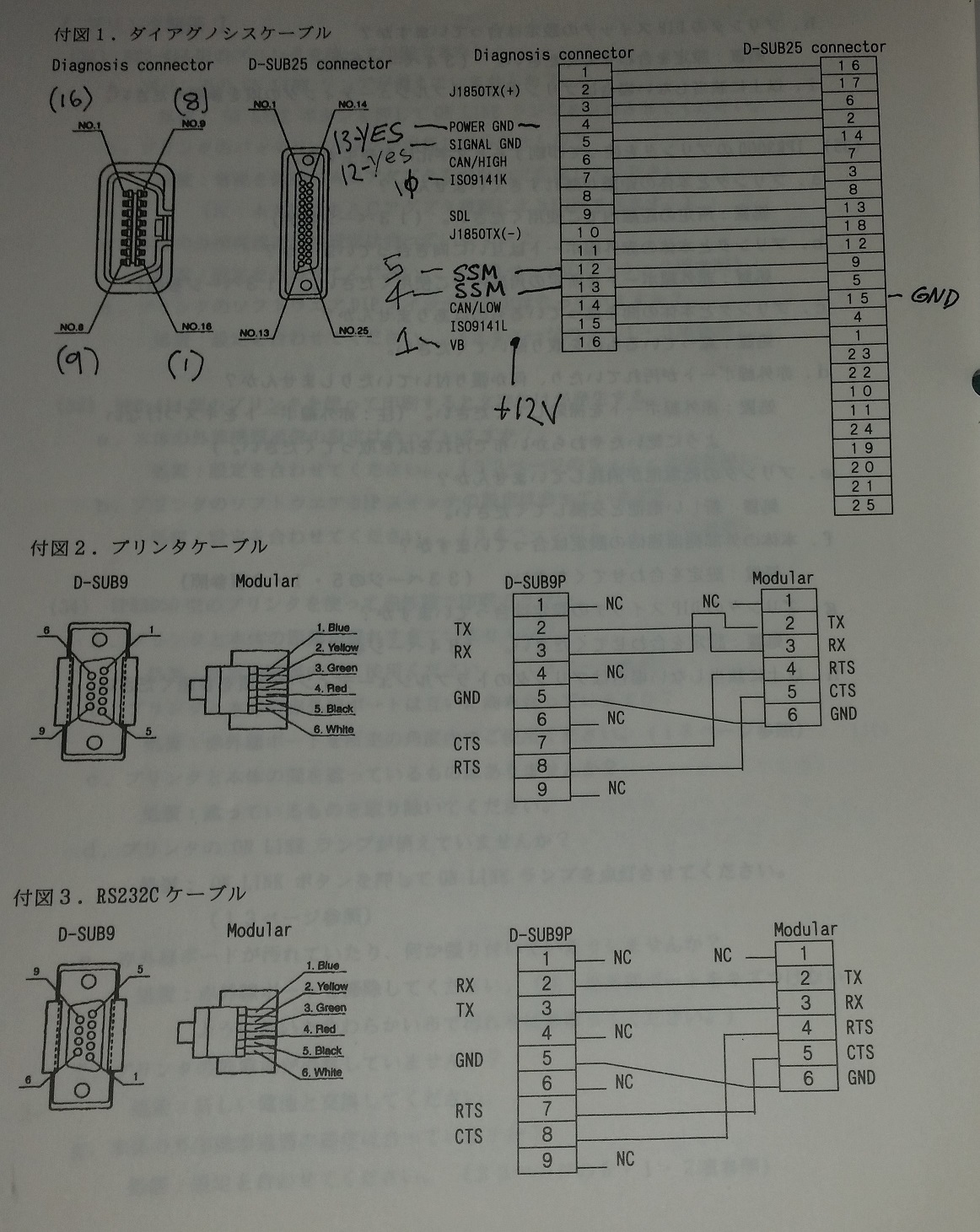

IF YOU WANT TO HOOK UP A DIFFERENT PRINTER THIS WILL HELP. IT ALSO HELPS WITH MAKING YOUR OWN SSM2 CABLES TO TALK TO YOUR CAR.
