The PGM3 ONLY had 1 official game. "Knights of Valour 3 HD".
PGM3 MANUAL / PDF
ART / BANNER / HOW TO PLAY CARDS
SD Card / Software Revisions
Knights of Valour 3 HD (V105) CN
Knights of Valour 3 HD (V104)
Knights of Valour 3 HD (V103)
Knights of Valour 3 HD (V102)
Knights of Valour 3 HD (V101)
You CAN upgrade your version of the game on the SD card! For example just download the Mame rom pack. Then use the SD Card images to make a clone SD card. Replace the SD card with the one you just imaged... And then you will have V105! (If that's the version you choose to make the Clone SD card with) This HAS been tested to work!
DIP Switch settings
1: OFF = Game mode / ON = Test mode
2: OFF = JAMMA / ON = JVS
3: OFF = 16/9 (1280x720) / ON = 4/3 (800x600)
4: NO USE

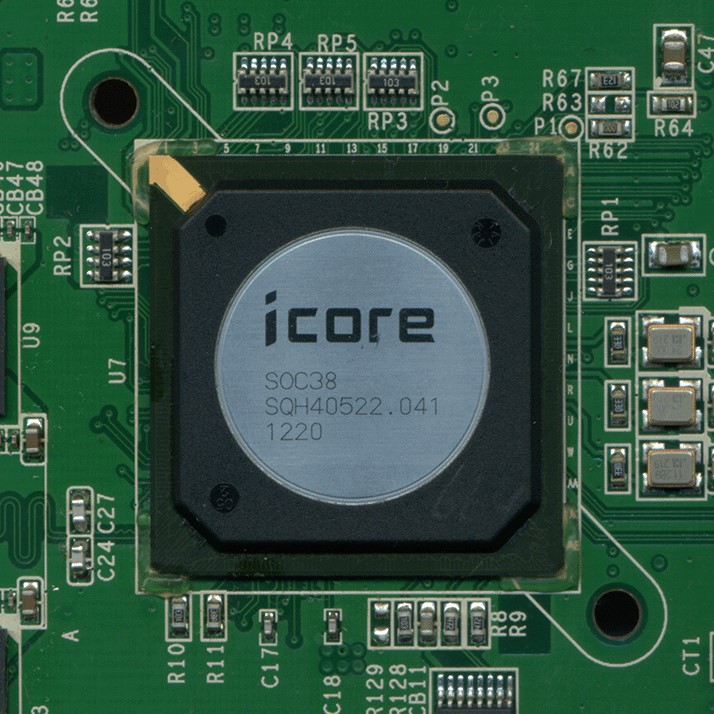

MAIN CPU: 'SOC38' is an ARM1176@800M designed by SOCLE (http://www.socle-tech.com/). PICTURE
SOFTWARE STORAGE: 8GB SD CARD
MAIN RAM: DDR3 2GB ? ( 4 X 512MB)
VIDEO OUTPUT: 31KHz VGA OR DVI (NOT 15KHz via JAMMA Finger)
EXTRA BUTTON INPUTS / PINOUT
BIG Thanks to "Clintkolodziej" for buying a PGM3 and sharing all this great info! With out him, There would be no PGM3 page!
"Knights of Valour 3 HD" PC Port!
"Ms.tea" has helped provide this data. "There was a "QQ arcade" online service run by Tencent. It was an online pay-to-play service with many games in it. A PC port of "Kov3 HD" was one of them. BUT the service is no longer available"
I have a copy of the game but I don't know if it works offline."
Quote from here https://qqgameplatcdn.qq.com/hallhelp/rule/rule248.html
"War of the Three Kingdoms 3 is a horizontal action game developed by Taiwan's IGS (International Electronics Co., Ltd.), and it is also the third part of the classic masterpiece of the "War of the Three Kingdoms" series. Through the joint cooperation between IGS and Tencent, "Three Kingdoms 3" was transplanted into QQ Daxie,
Inheriting the game play of the first and second generations. Players can also use generals to prepare weapons and armour, and show off their skills, so that players can once again enjoy regardless of the two-player online game. Or ride alone to block thousands, talking and laughing to force the exhilaration of being wiped out!
